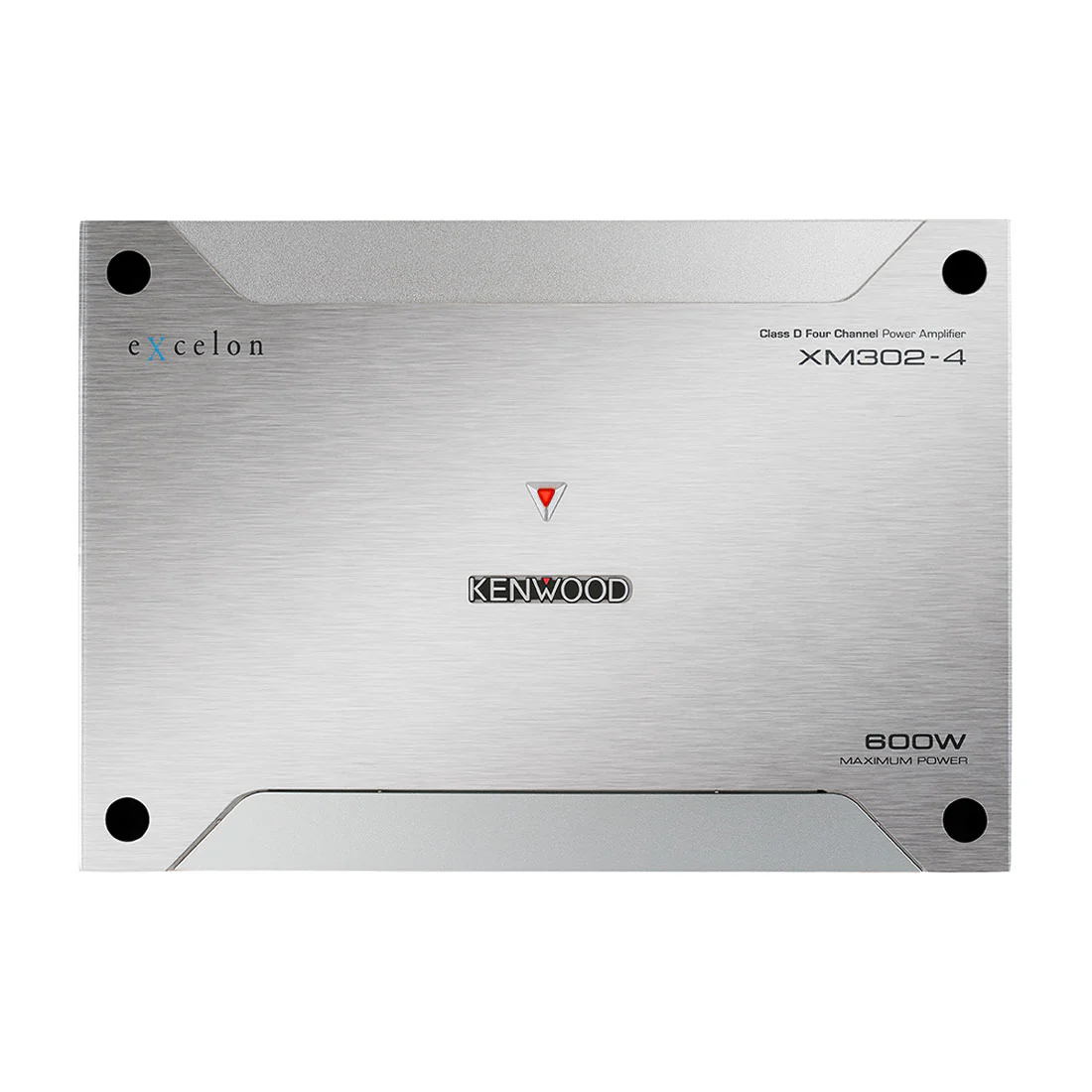

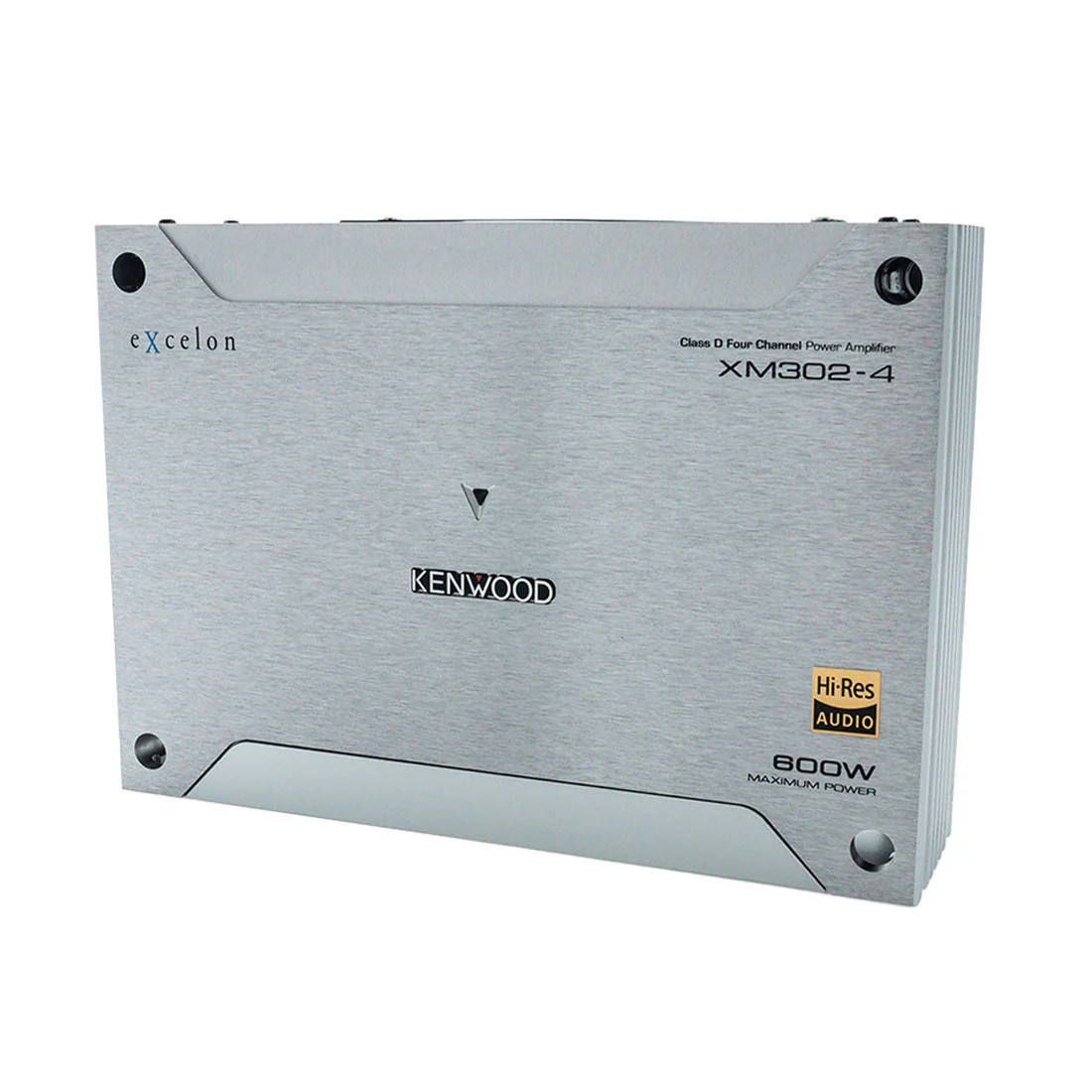

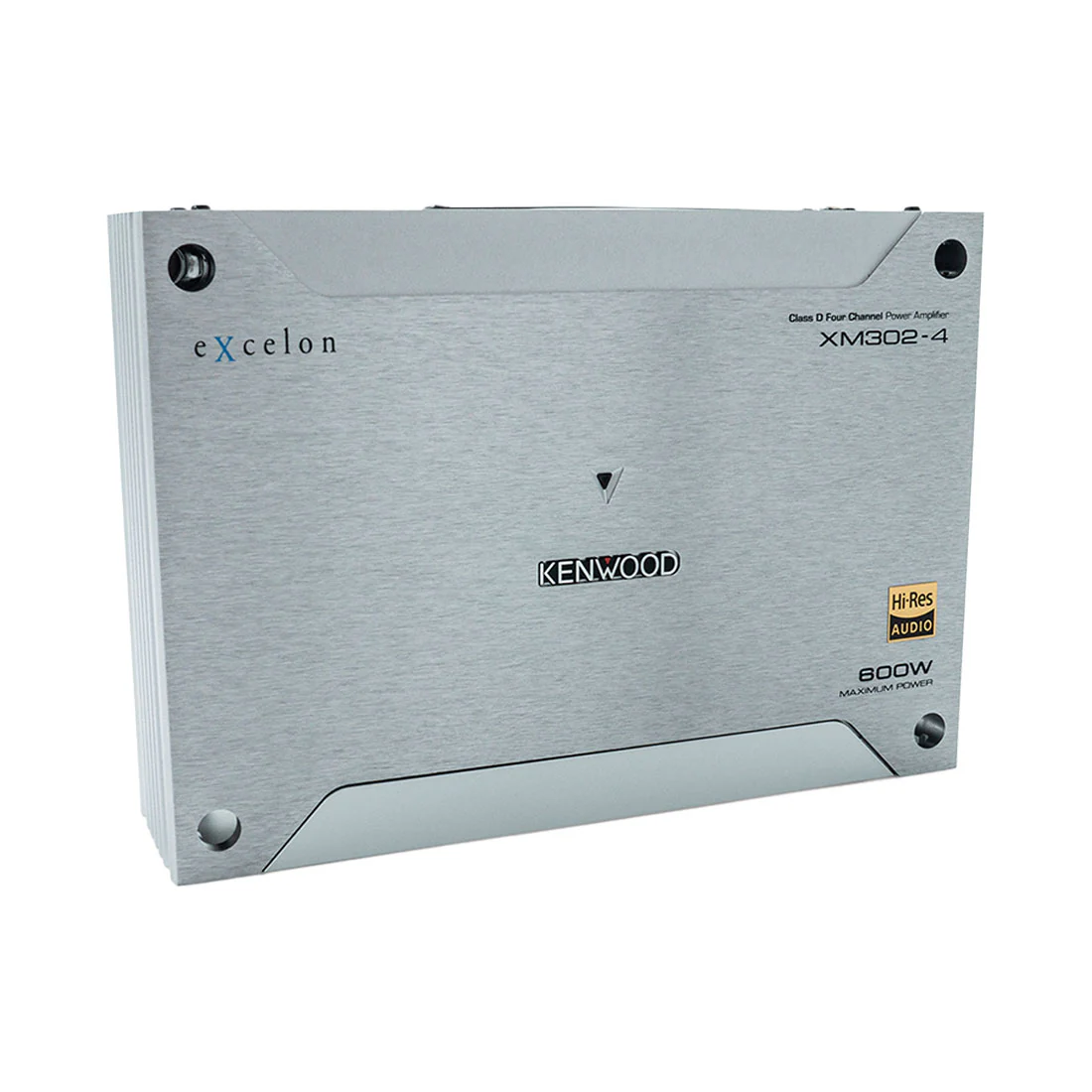

Kenwood eXcelon XM302-4 4-Channel Powersports/Marine Amplifier - 50 watts RMS x 4 (XM3024)
Kenwood eXcelon XM302-4 4-Channel Powersports/Marine Amplifier - 50 watts RMS x 4
Kenwood's eXcelon XM302-4 four-channel powersports/marine amplifier delivers 50 watts RMS per channel, yet still fits almost anywhere in your vehicle. Switch this amp over to bridged, 2-channel mode, and you can power a pair of high-performance speakers or subs with 150 watts RMS each. In 3-channel mode, you can use the amp's front channels to drive a pair of speakers with 50 watts each, and bridge the rear channels to send 150 watts to a sub. This versatility pays off as your system evolves over time.
Fine-tuning included
High-and low-pass filters let you optimize the sound for your vehicle and speakers. When you're running a subwoofer with the rear channels, you can adjust a bass boost to get just the right tone to fit your musical tastes.
Convenient weather-proof technology
Conformal coating protects the internal circuits from water and dirt, so the show will always go on, even through the roughest conditions on road, trail, or waterway. Class D technology ensures that this compact amp will run cool and perform reliably. The amp accepts input signals from a receiver's RCA outputs or speaker wiring, so it'll work with almost any audio system. If you do use the speaker-level inputs, the amp can s
Rich and Immersive High-Resolution Audio
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
Conformal Coating
Improved moisture resistance of the circuit boards to prevent corrosion.

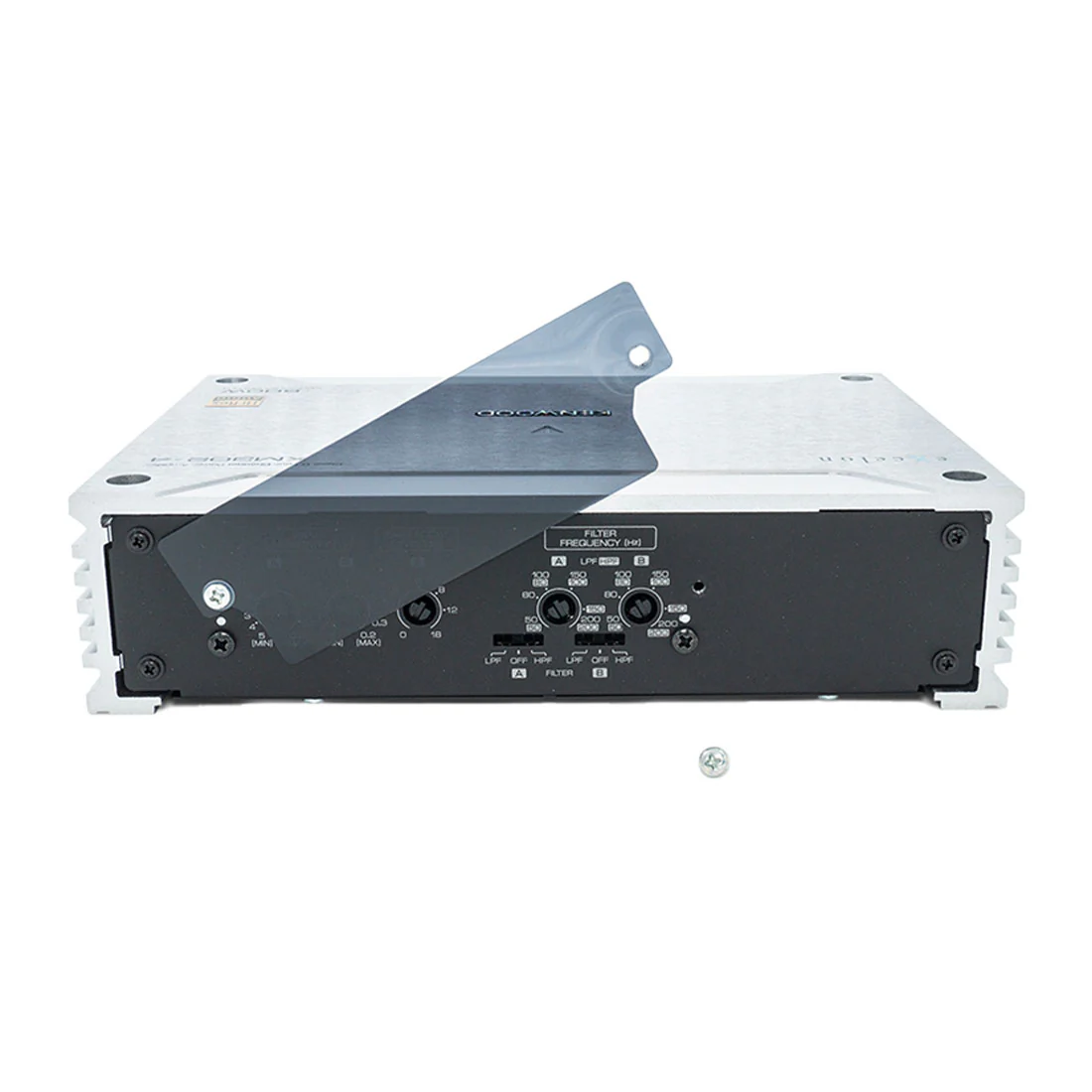

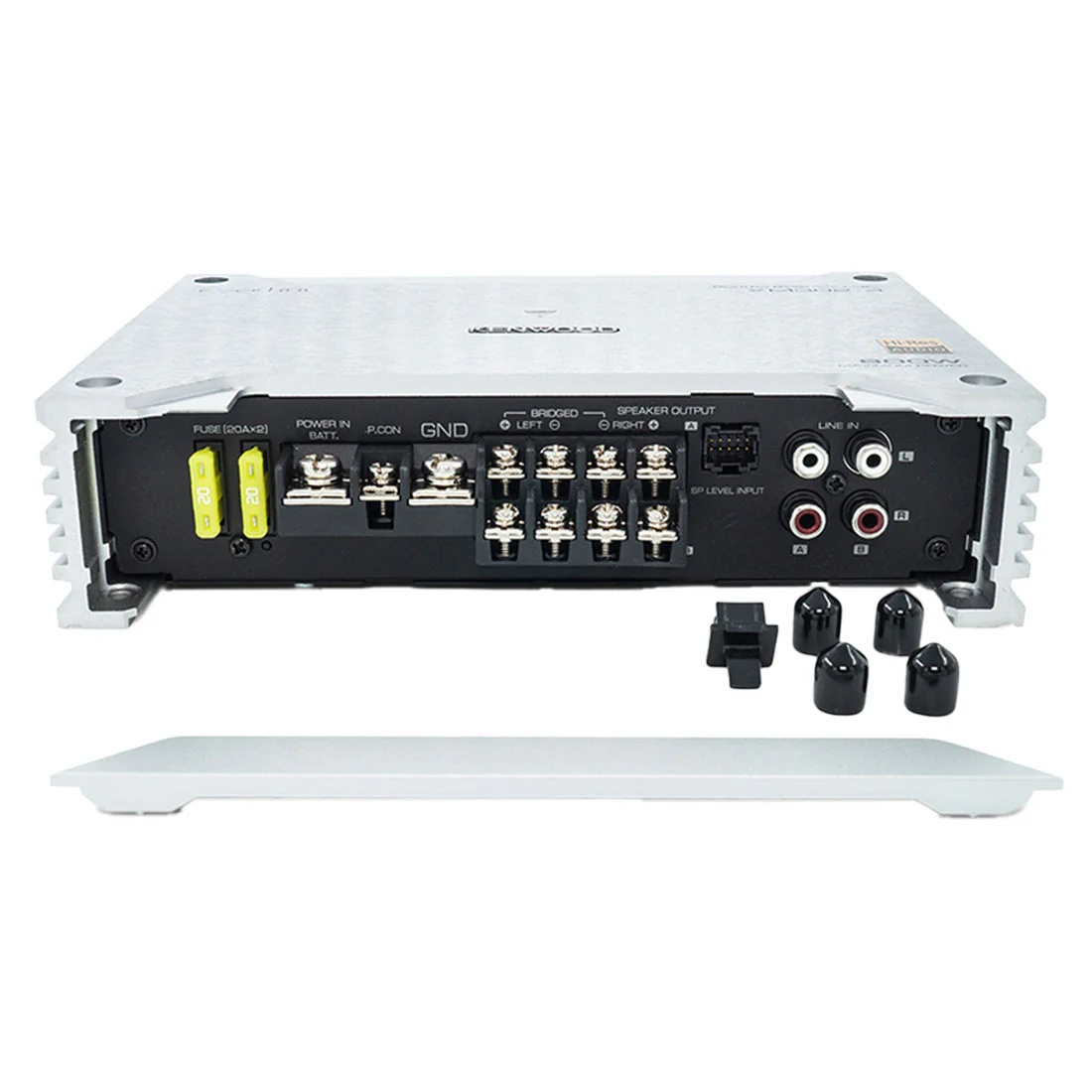

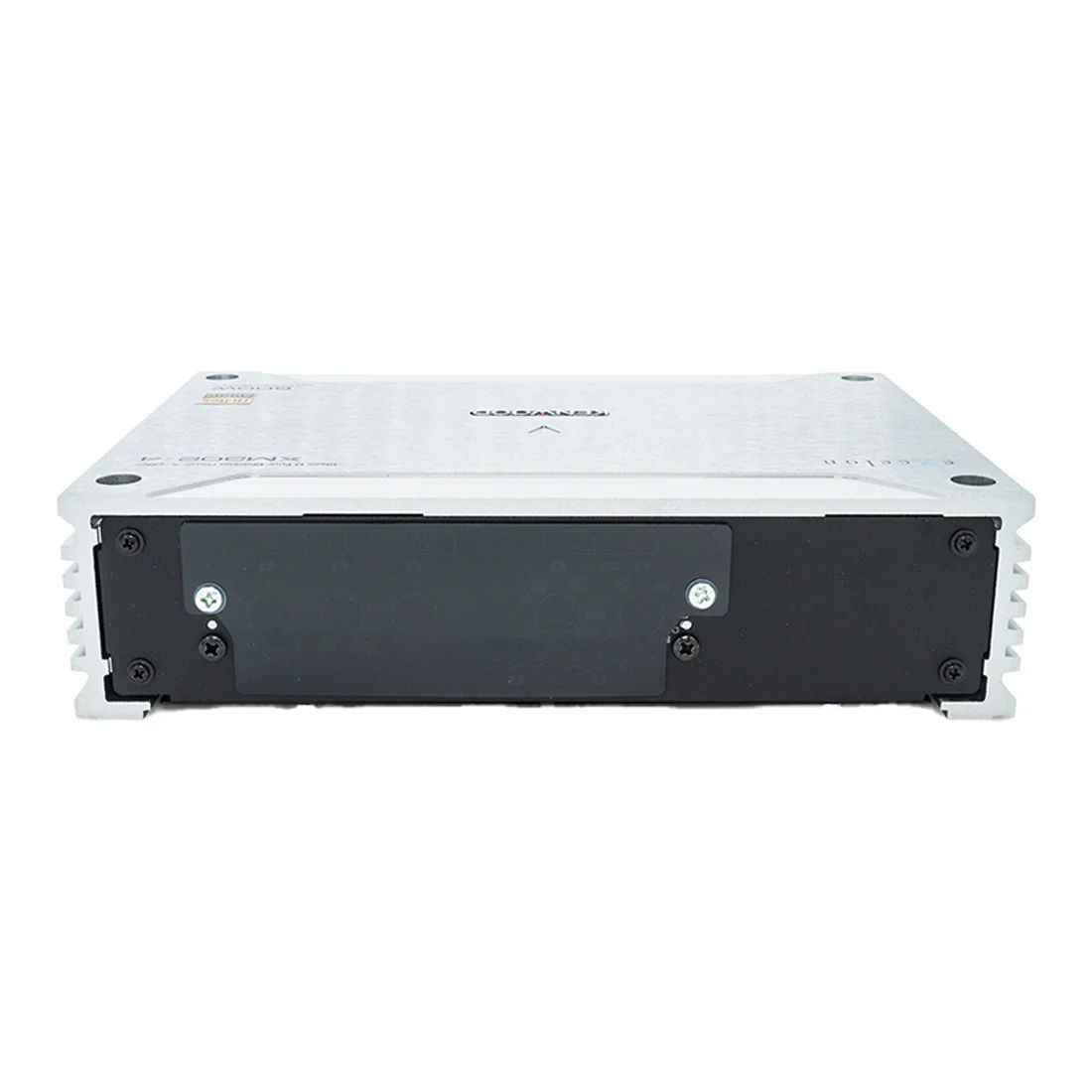

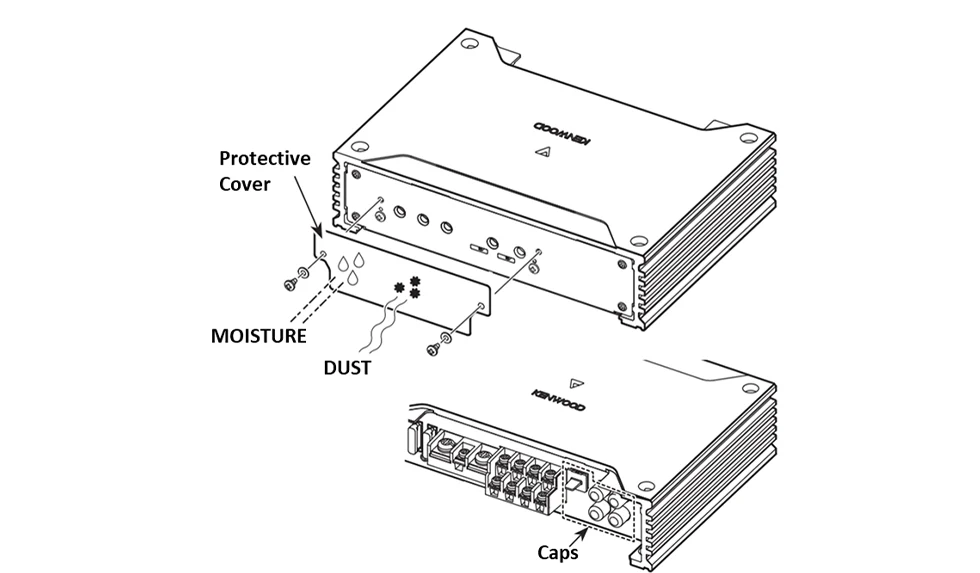

Protective Caps and Cover
All control holes, RCA, wired remote and Speaker Level input terminals are covered with caps and plastic covers to avoid from moisture and dust.

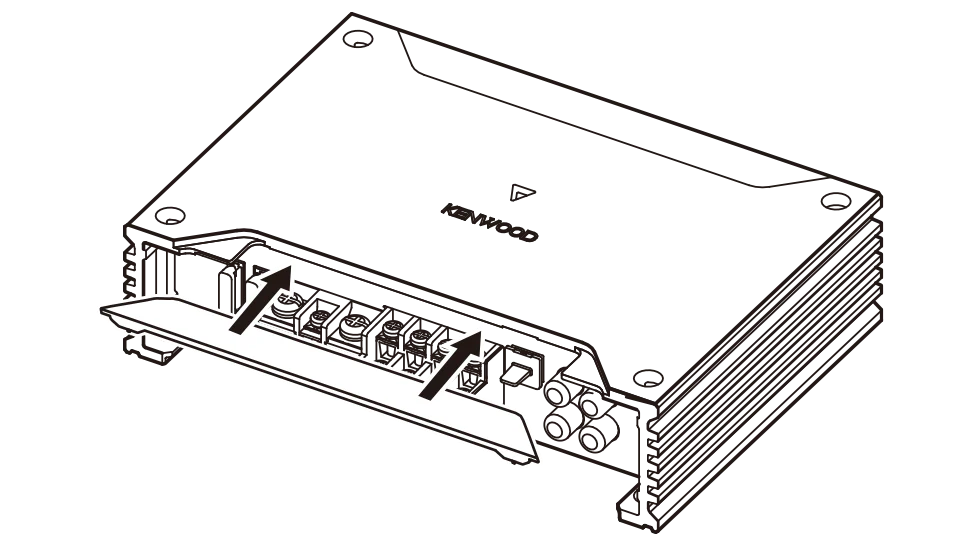

Sliding Terminal Cover
Detachable sliding terminal cover offers a sleek design and easier installation.

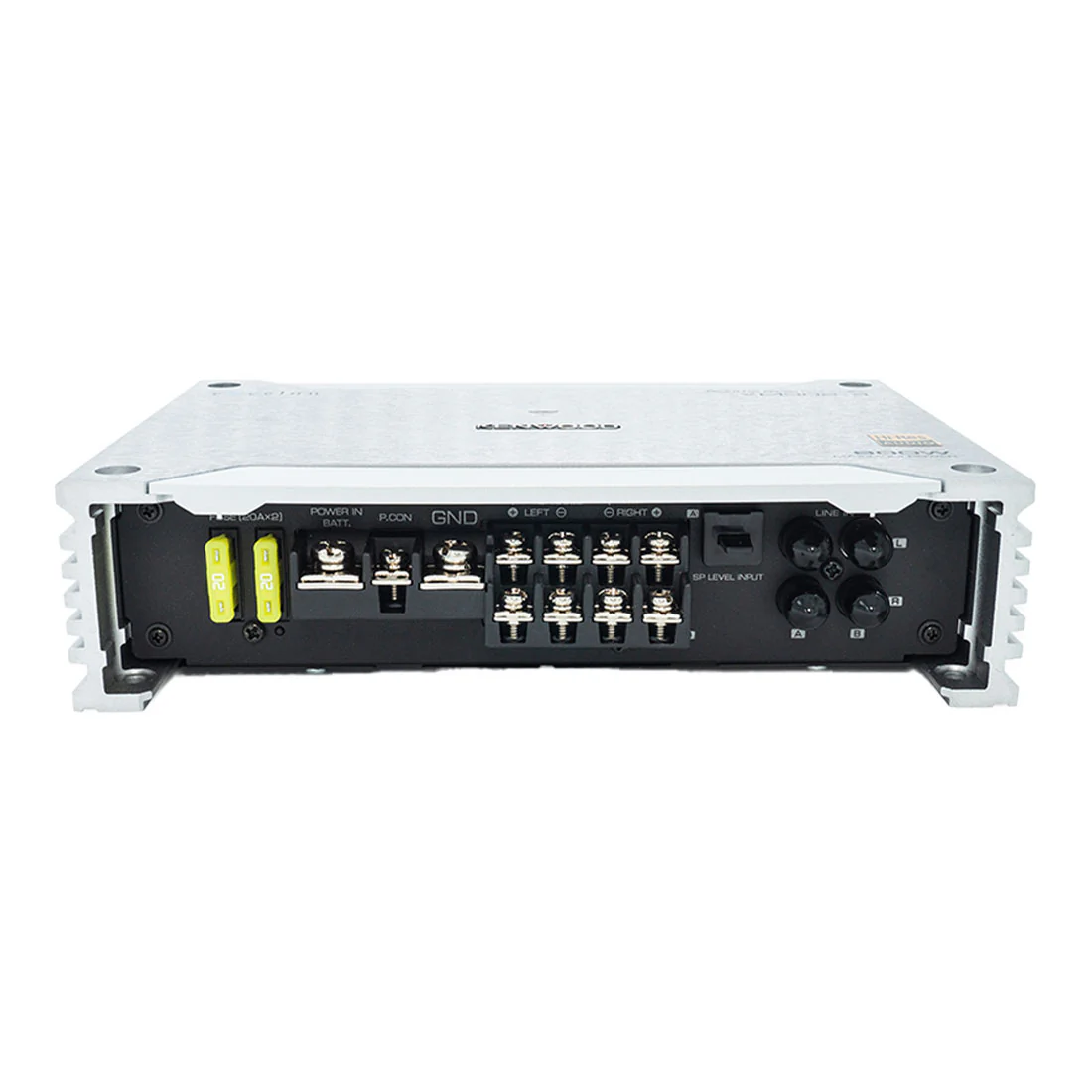

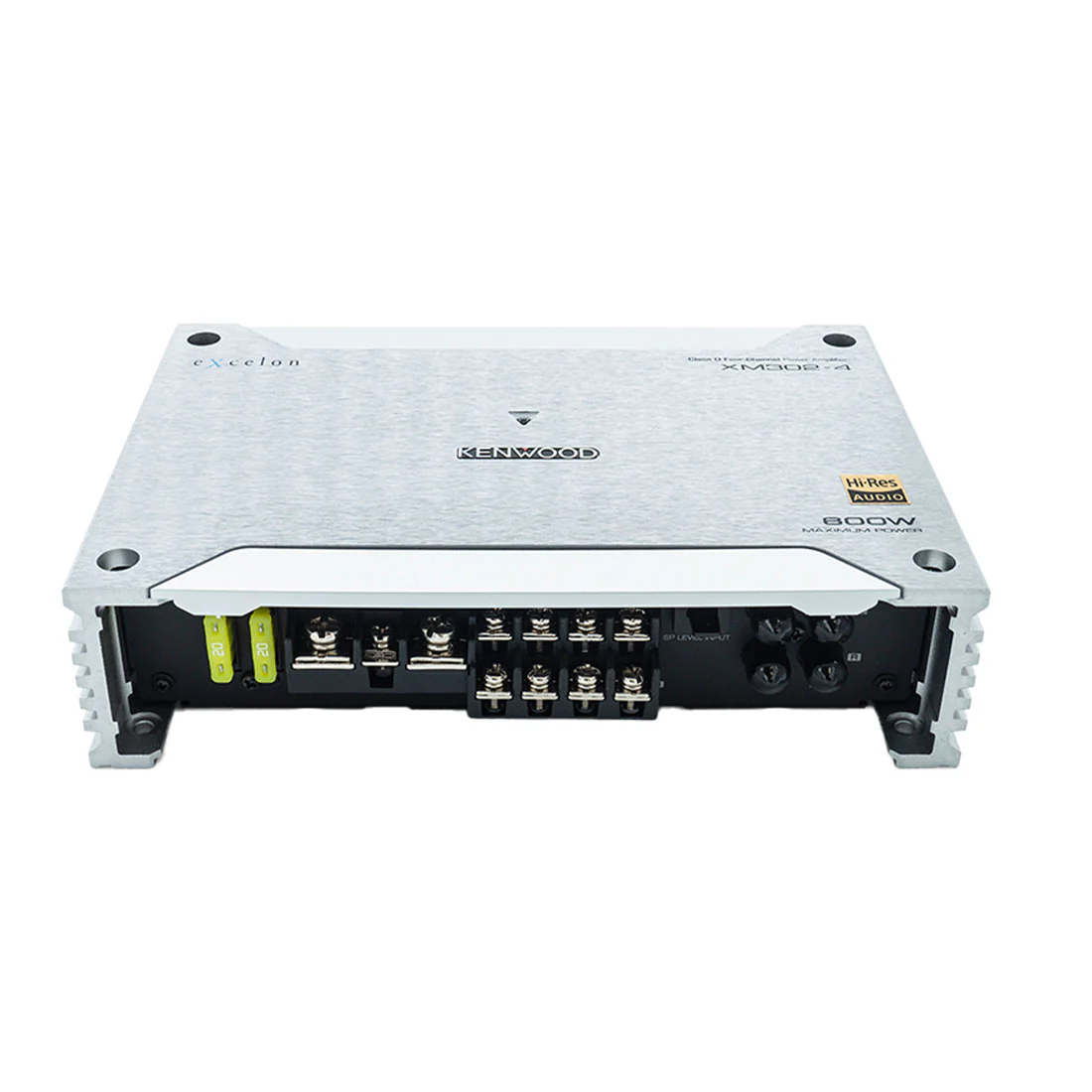

One-side Connection
All terminals and connections are on one side for easier installation and a cleaner look.

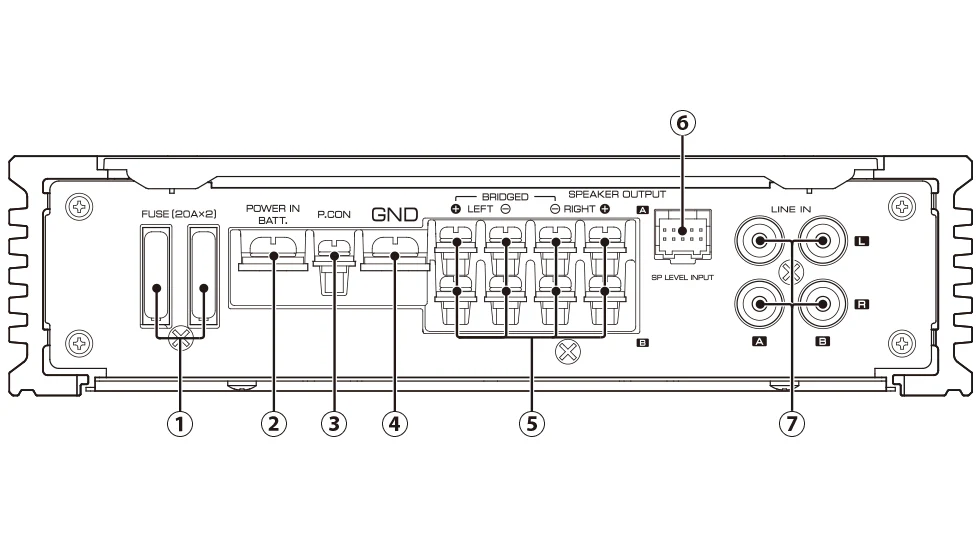

- 1- Fuse (20A x2)
- 2- Battery terminal (POWER IN BATT.)
- 3- Power control terminal
- 4- Ground terminal (GND)
- 5- Speaker output terminals (A.ch/B.ch)
- 6- Speaker level input terminal
- 7- Line in terminal

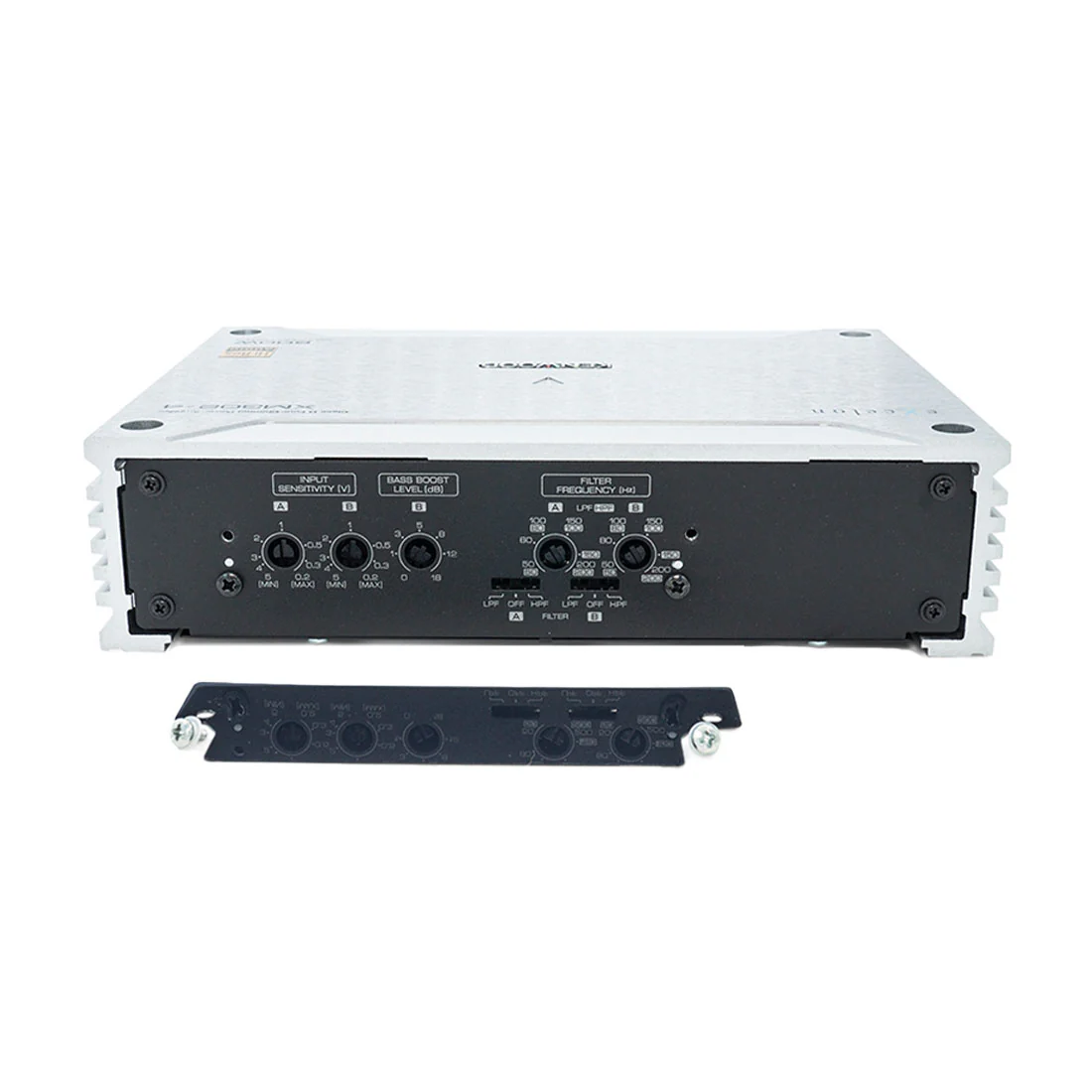

Variable Gain Circuit
Improved Signal to Noise Ratio

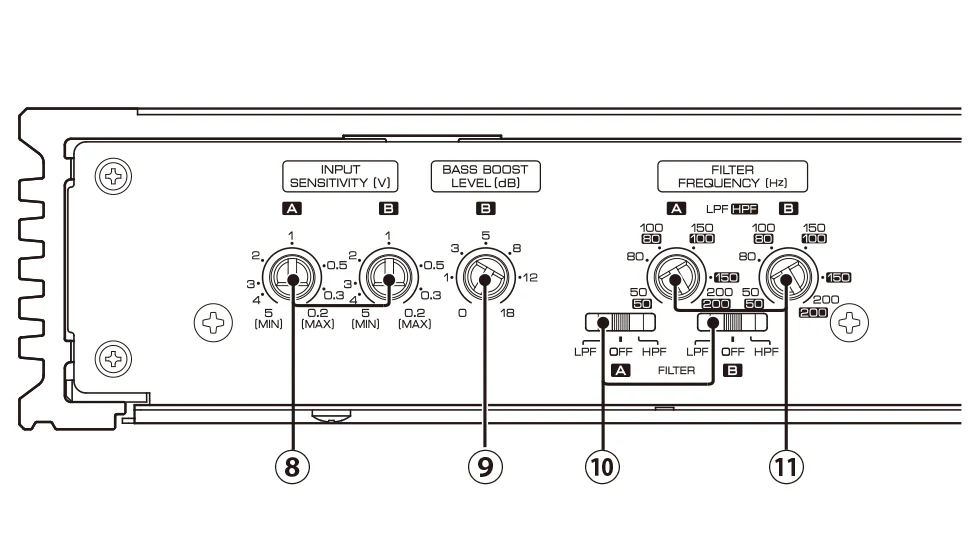

- 8- Input sensitivity control(A.ch/B.ch)
- 9- Bass Boost Level control (B.ch)
- 10- Filter switch (A.ch/B.ch)
- 11- Filter frequency control (A.ch/B.ch)

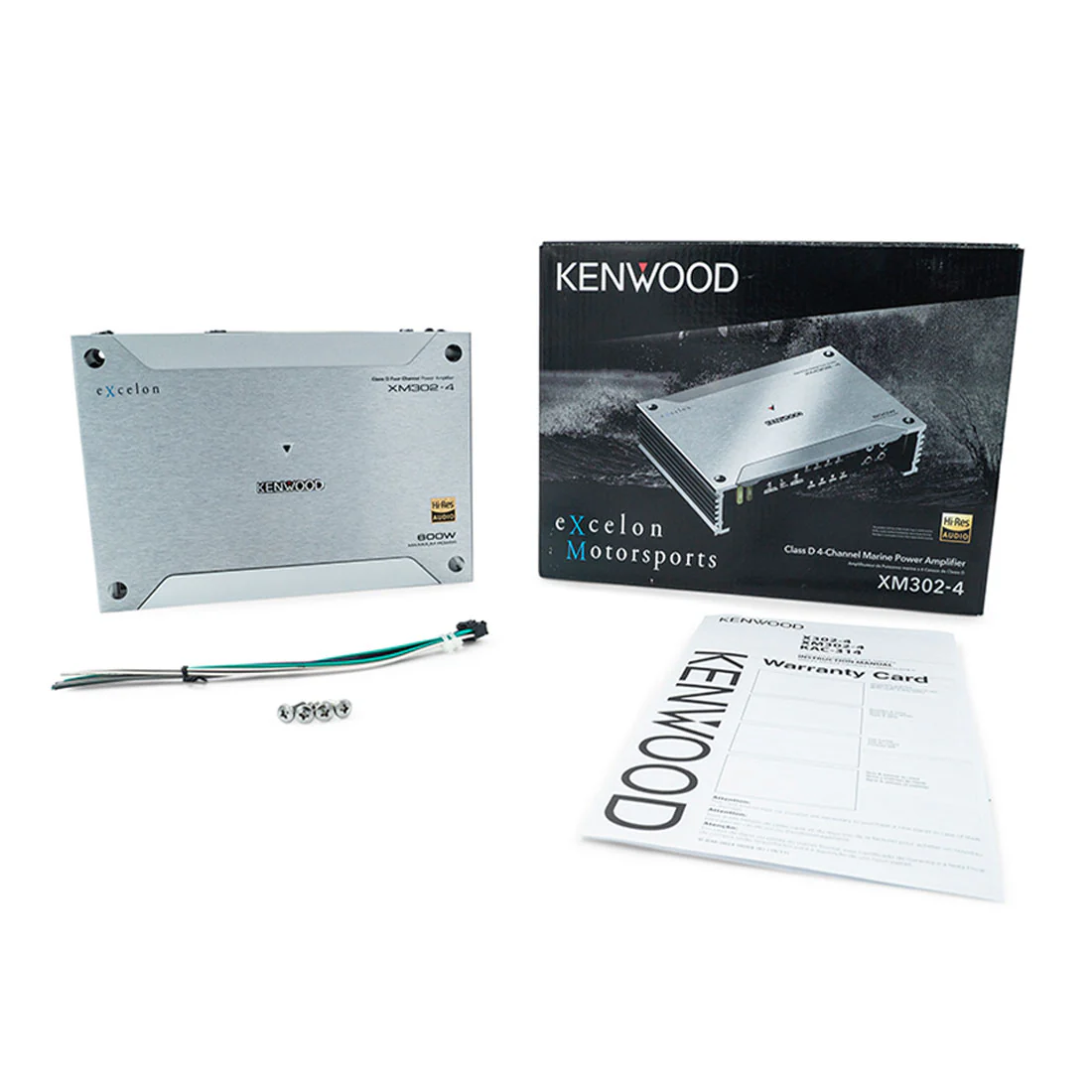

Speaker Level Input Harness
Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.
XM302-4 Highlights
- RMS 50W x4 (4 Ohm)
- RMS 75W x4 (2 Ohm)
- Variable High & Low Pass Filter
- Bass Boost
- Conformal Coating
- Protective Terminal Cover
- Size (inch) (W) 8-3/8" x (H) 2-1/16" x (D) 5-7/8"
